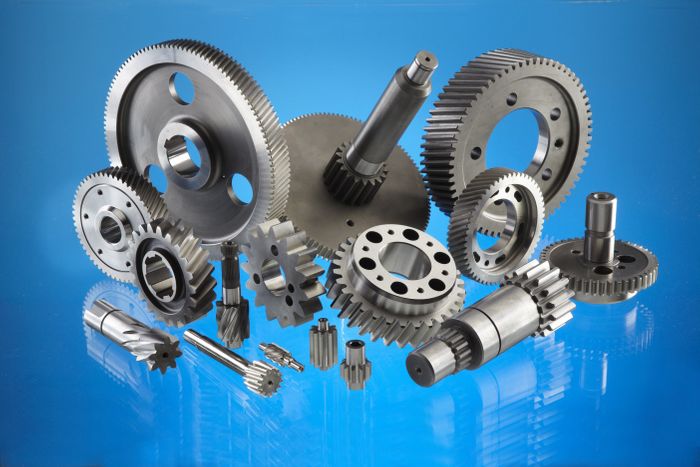

Ground Gears and Shafts
Mini Gears is a specialist subcontract gear manufacturer, supplying to a wide range of industries, offering both commercial and high precision custom made gears to your drawing specifications. Gears can be manufactured on a complete supply or gear cutting only basis and in a range of materials.
Ground Gears and Shafts - The gear grinding operation is a final finishing process that removes any small deviation on a gear tooth and is widely regarded as the most accurate way of finishing a high precision gear.
Huge investment in our Gear Grinding Capacity with the arrival, in July 2022, of a brand new Gleason Pfauter Profile Grinding Machine P600/800G, doubling our previous maximum grinding diameter.
We can now offer a gear grind only service for external grinding of Spur Gears, Helical Gears and Splines up to 800mm diameter, grades DIN/AGMA 3 to 4, maximum face width 600mm and from 1 to 15 Module. This is in addition to the service already provided for manufacturing complete supply of ground gears up to 400mm with a maximum face width of 125mm.
The P600/800G is adaptable to many different gear applications with various grinding heads for a variety of wheel diameters and, with on board gear inspection, measurement graphs for each gear can be provided
- AS/EN/JISQ 9100
- ISO 9001
