PCIe board based on XpressSX AGI-FH400G Agilex™ I-Series SoC FPGA

REFLEX CES

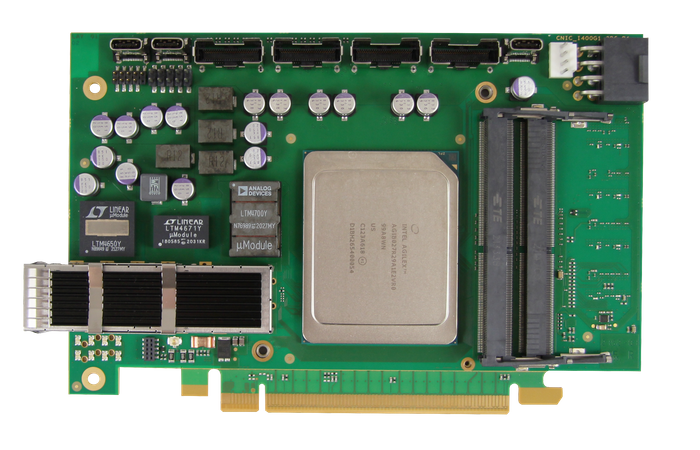

The XpressSX AGI-FH400G Agilex™ I-Series SoC PCIe board is a full height, half length PCIe Gen5 Network Processing board, featuring the Agilex™ I-Series SoC FPGA and 400Gb Ethernet.

The Intel® Agilex™ board is based on an Intel® Agilex™ I-series SoC FPGA. This device is optimized for applications which are bandwidth intensive and require a high-performance processor interface, supported by the CXL™ standard interface, the PCIe Gen5 x16 interface, and transceiver tiles with data rates up to 116 Gbps.

Main features are:

  • Intel® Agilex™ I-Series SoC FPGA
  • Quad Core ARM® Cortex® A53
  • 2700 KLE
  • PCIe Edge Gen5 x16, CXL™ standard
  • 400GbE (8 x 56 Gbps)
  • 3x independent DDR4 banks
  • 4x HSI connectors (PCIe Gen5 x16 EP)

The FPGA board is delivered with a 2-slot PCIe active heatsink and is specifically optimized for embedded applications.
